Surgical Stop Bleeding Harmosonic Scalpel

Quantity:

System Description

The UHS14 System utilizes ultrasonic energy to enable haemostatic cutting and/or coagulation of soft tissue. The system consists of an ultrasonic generator, a foot switch, an optional hand switching adaptor, a hand piece, and a variety of open and minimally invasive instruments.

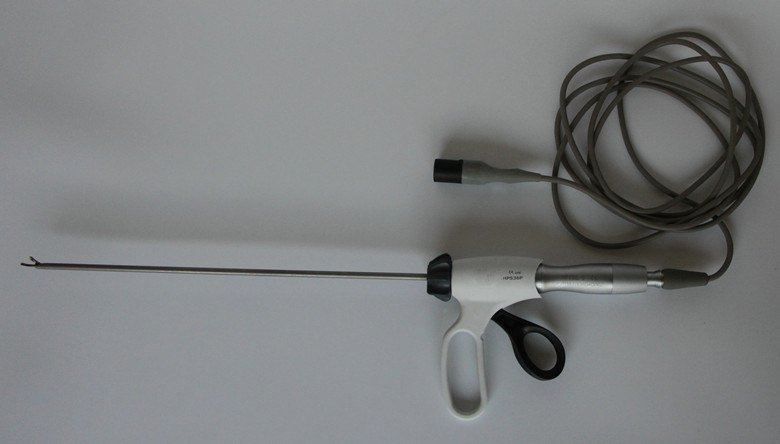

Surgical Stop Bleeding Harmosonic Scalpel

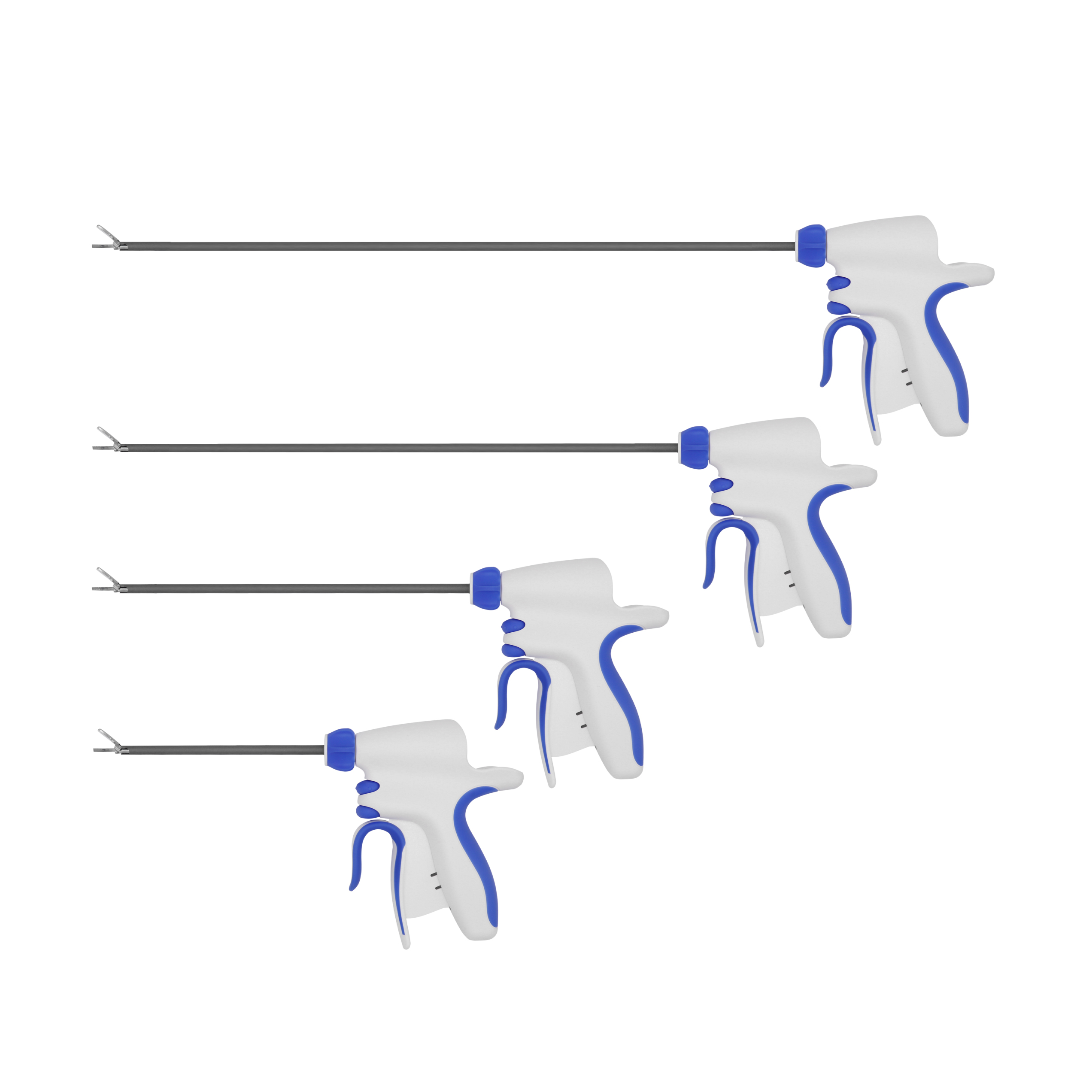

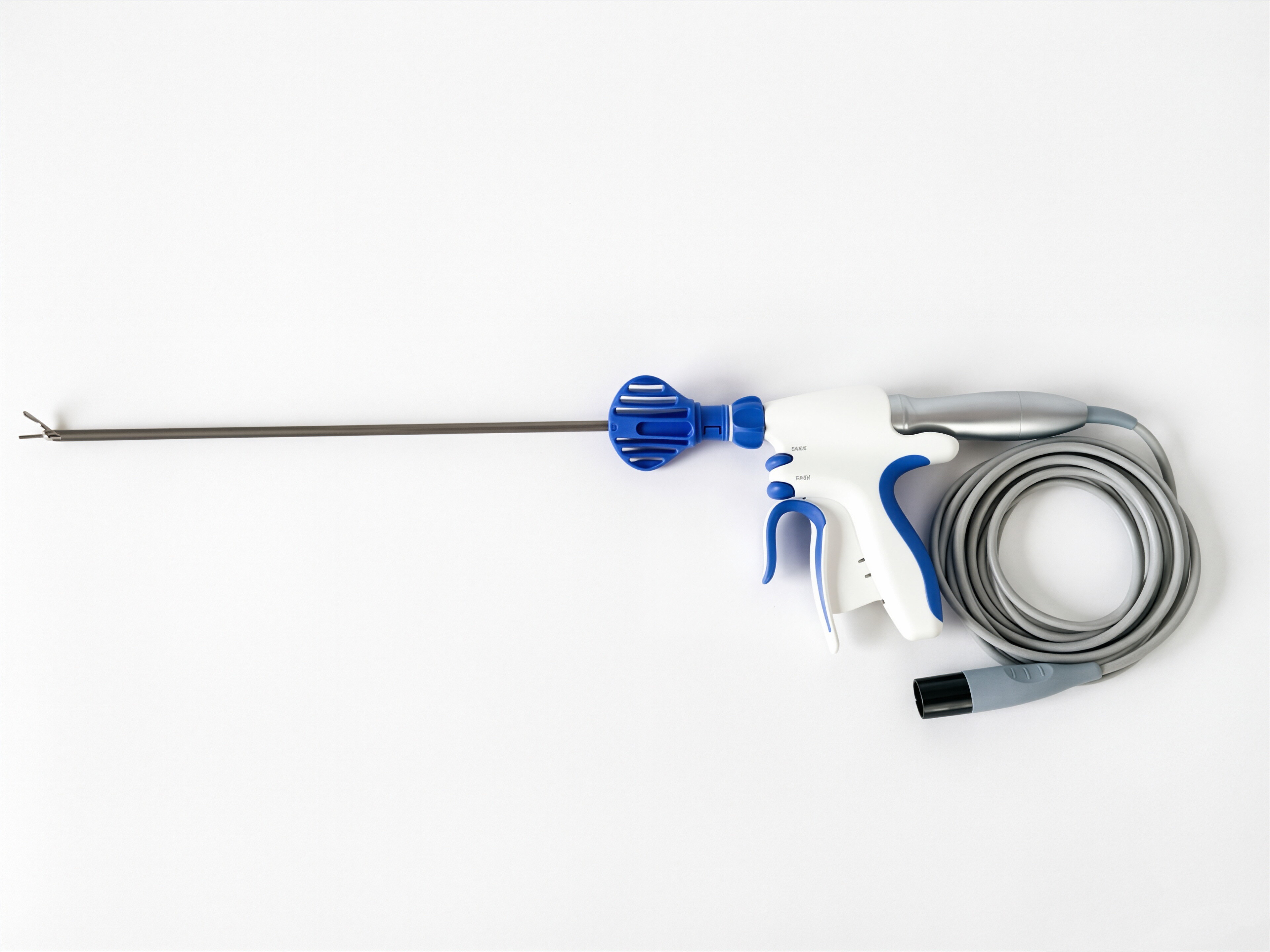

Hand Piece Scalpel  ENDOHP36/ENDOHP23/ENDOHP14
Surgical Stop Bleeding Harmosonic Scalpel
Foot Switch ENDOFS00

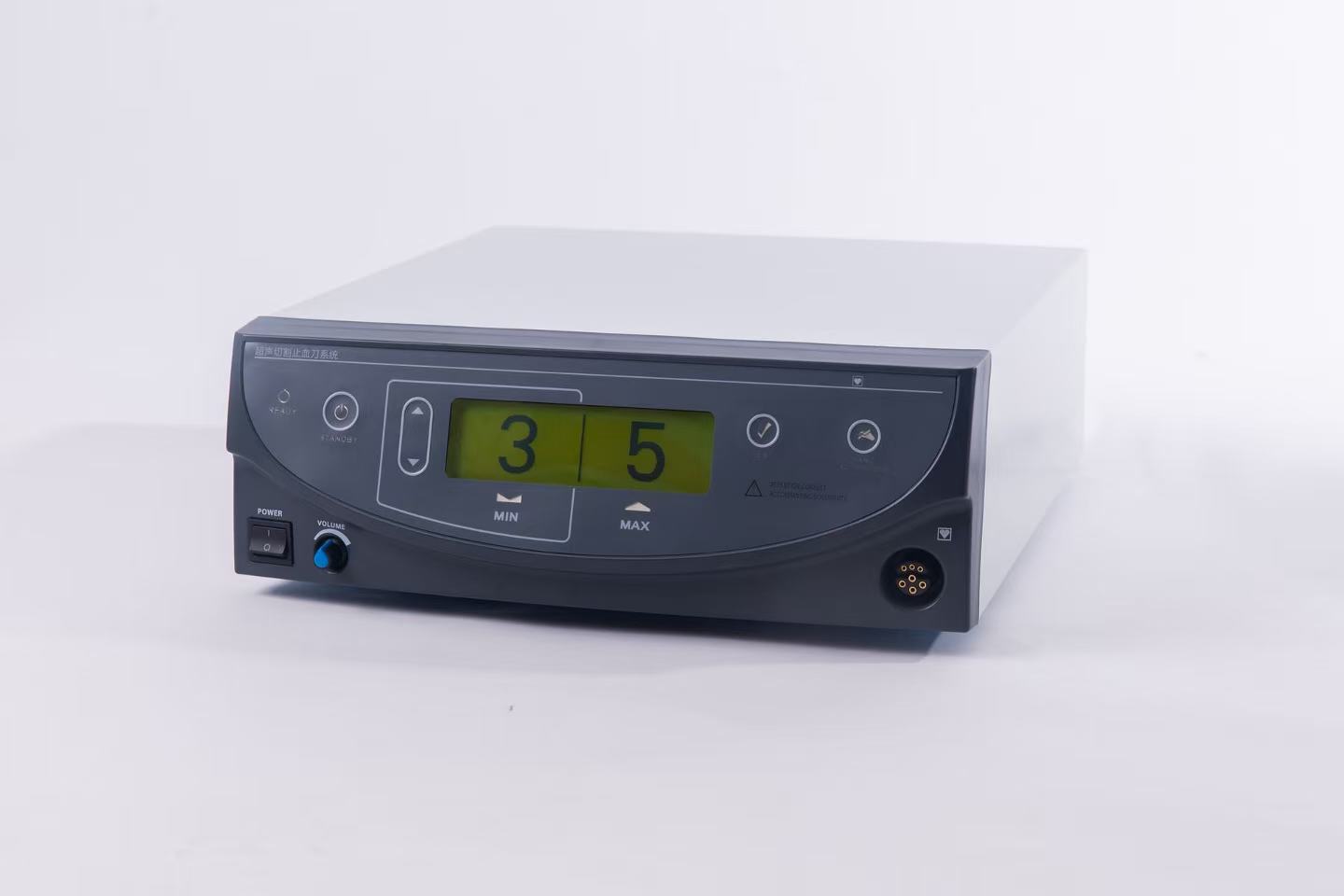

Ultrasonic Scalpel System UHE14

The instruments vibrate longitudinally at 55.5 kilohertz. This ultrasonic vibration at the blade enhances its cutting ability. The same vibration seals small vessels with coagulated blood and tissue proteins. Haemostasis occurs when tissue couples with the instrument. This coupling causes collagen molecules within the tissue to vibrate and become denatured, forming a coagulum.

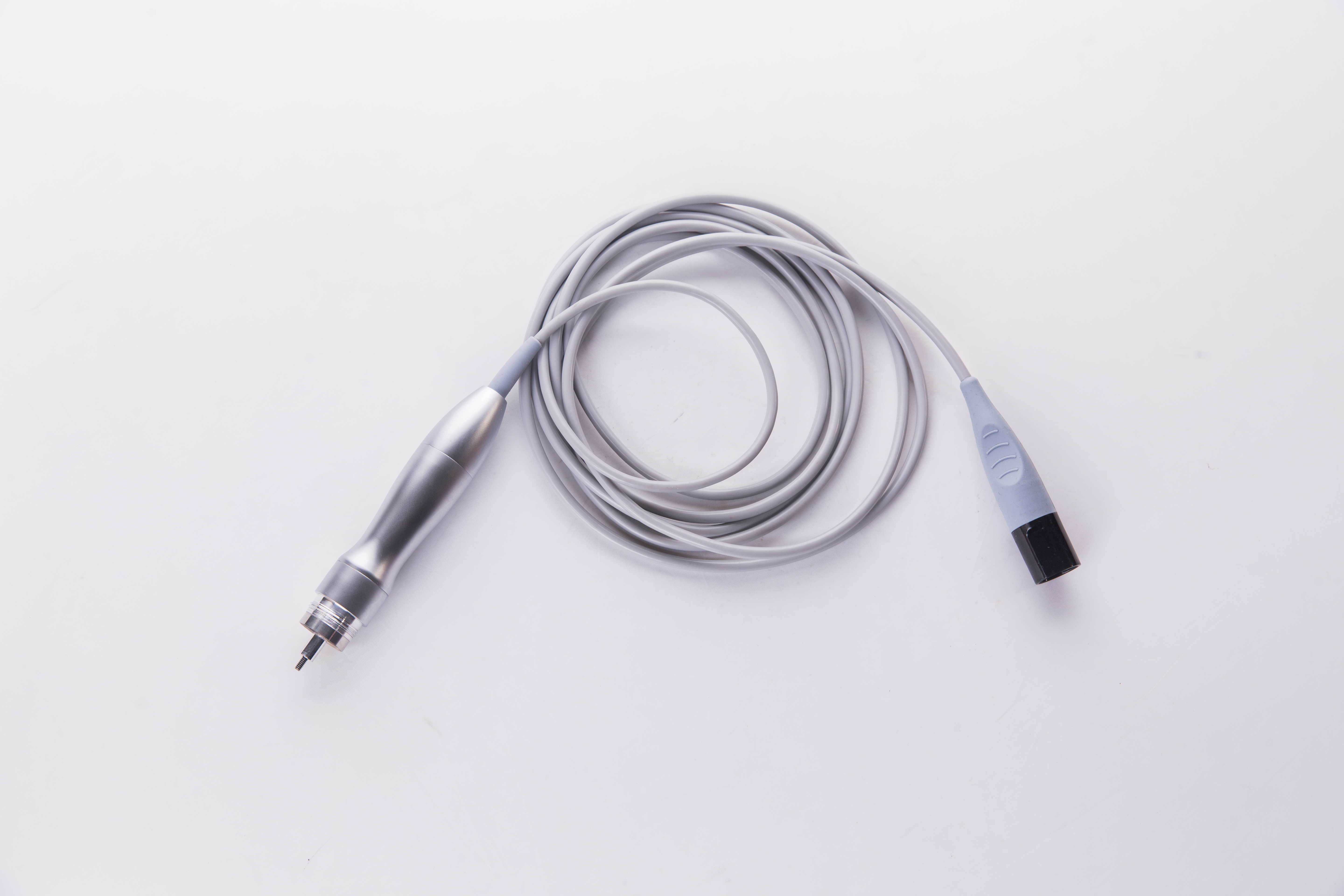

Transducer ENDOT55.5

Surgical Stop Bleeding Harmosonic Scalpel

Indications

The UHS14 System is indicated for soft tissue incisions when bleeding control and minimal thermal injury are desired. The System instruments can be used as an adjunct to or substitute for electro surgery, lasers, and steel scalpels.

Contraindications

        The instruments are not indicated for incising bone.

        The instruments are not intended for contraceptive tubal occlusion.

System Components

Generator
The generator supplies the hand piece with electrical energy and facilitates selection of power levels, system monitoring, and system diagnostics.

Power is delivered by activating the foot switch or hand switching adaptor.


Hand Piece
The hand piece contains an acoustic transducer that converts the electrical energy supplied by the generator to mechanical motion. The transducer is connected to an ultrasonic wave guide/amplifier which amplifies the motion produced by the transducer and relays it to the instrument.


Instrument
The mechanical motion from the hand piece advances to the instrument, transmitting ultrasonic energy which enables
haemostatic cutting and/or coagulation of tissue.

Power Levels

The generator delivers two power levels: minimum (MIN) and maximum (MAX). The minimum power level may be adjusted by the user from Level 1 to 5. The maximum power level is always Level 5. With all instruments except the ball coagulator, use a higher generator power level for greater tissue cutting speed and a lower generator power level for greater coagulation. For the ball coagulator, higher generator power levels will provide greater coagulation. The amount of energy delivered to the tissue and resultant tissue effects are a function of many factors including the power level selected, instrument characteristics, grip force (when applicable), tissue tension, tissue type, pathology, and surgical technique.

Appendix: Our Ultrasonic Scalpel UHS14 compared with J&J,Accessories compatible

Name UHS14 J&J GEN300 J&J GN11
Input voltage AC90-240V AC90-240V AC90-240V
Operating temperature 10-30° 10-30° 10-30°
Driver frequency 55.5kHz 55.5kHz 55.5kHz
Scalpel vibration 50-100um 50-100um 50-100um
Ultrasonic transducer HPT55.5S,HPT55.5B
  HP054,HPBLUE HP054,HPBLUE HP054,HPBLUE
Ultrasonic hand piece scalpel HPS36P,HPS23P,etc HPS36P,HPS23P,etc
           ACE36E,ACE23E,etc ACE36E,ACE23E,etc
  HAR36,HAR23   HAR36,HAR23
  HPS9B(FOCUS) HPS9B(FOCUS)
  PCS9(FOCUS) PCS9(FOCUS) PCS9(FOCUS)
Use of the hand piece scalpel Hit a hard object without damage Hit a hard object will be damaged Hit a hard object will be damaged
  Can closure 5mm Vascular Can closure 5mm Vascular Can closure 5mm Vascular
  Hemostatic cutting fast Hemostatic cutting fast Hemostatic cutting fast
Disinfection of the hand piece scalpel  Support 134°C sterilization Not support 134°C sterilization Not support 134°C sterilization
  Reuse Disposable products Disposable products
Pedal  FSW01 FSW01 --
Generator Self-test Self-test Self-test
  Fault Display Fault Display Fault Display
  Working Voice Working Voice Working Voice
  Sound Failure Sound Failure Sound Failure
Applicable scope For laparoscopic surgery
For open surgery
For superficial surgery
For laparoscopic surgery
For open surgery
For superficial surgery
For laparoscopic surgery
For open surgery
For superficial surgery
Not Applicable Bone cutting and tubal closure Bone cutting and tubal closure Bone cutting and tubal closure
