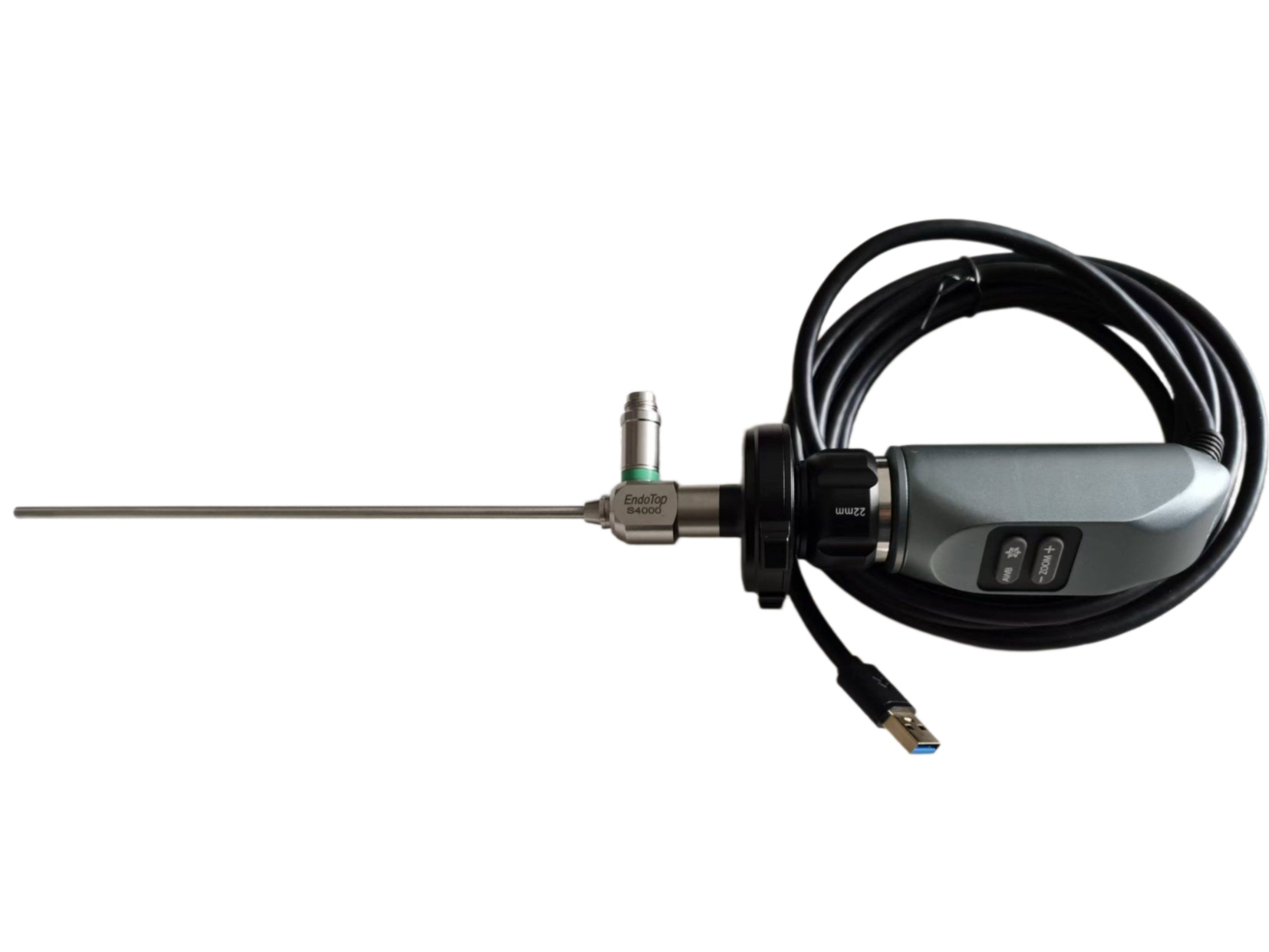

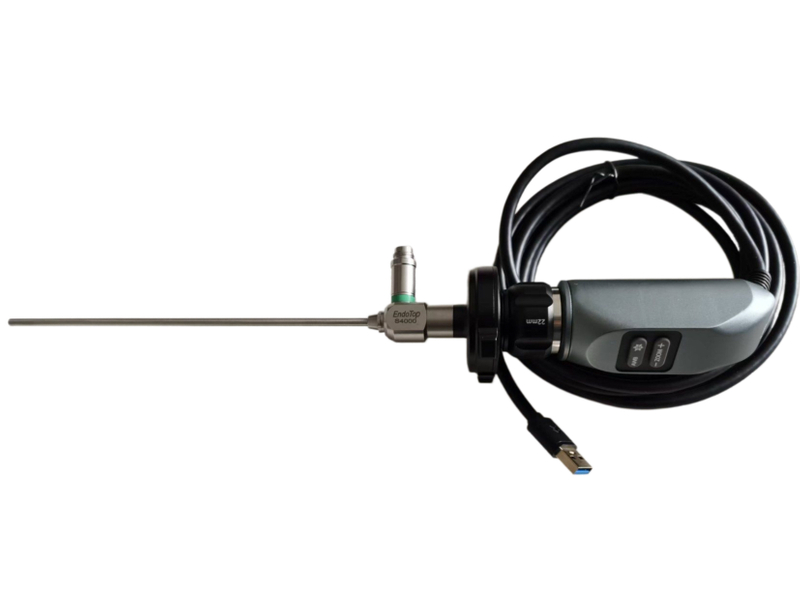

Medical/Veterinary/Industrial use USB Endoscopy Camera

USB3.0 Endoscope Camera User Manual

Parameters:

Resolution: 1920 x 1080 60P (2.07 Megapixels)

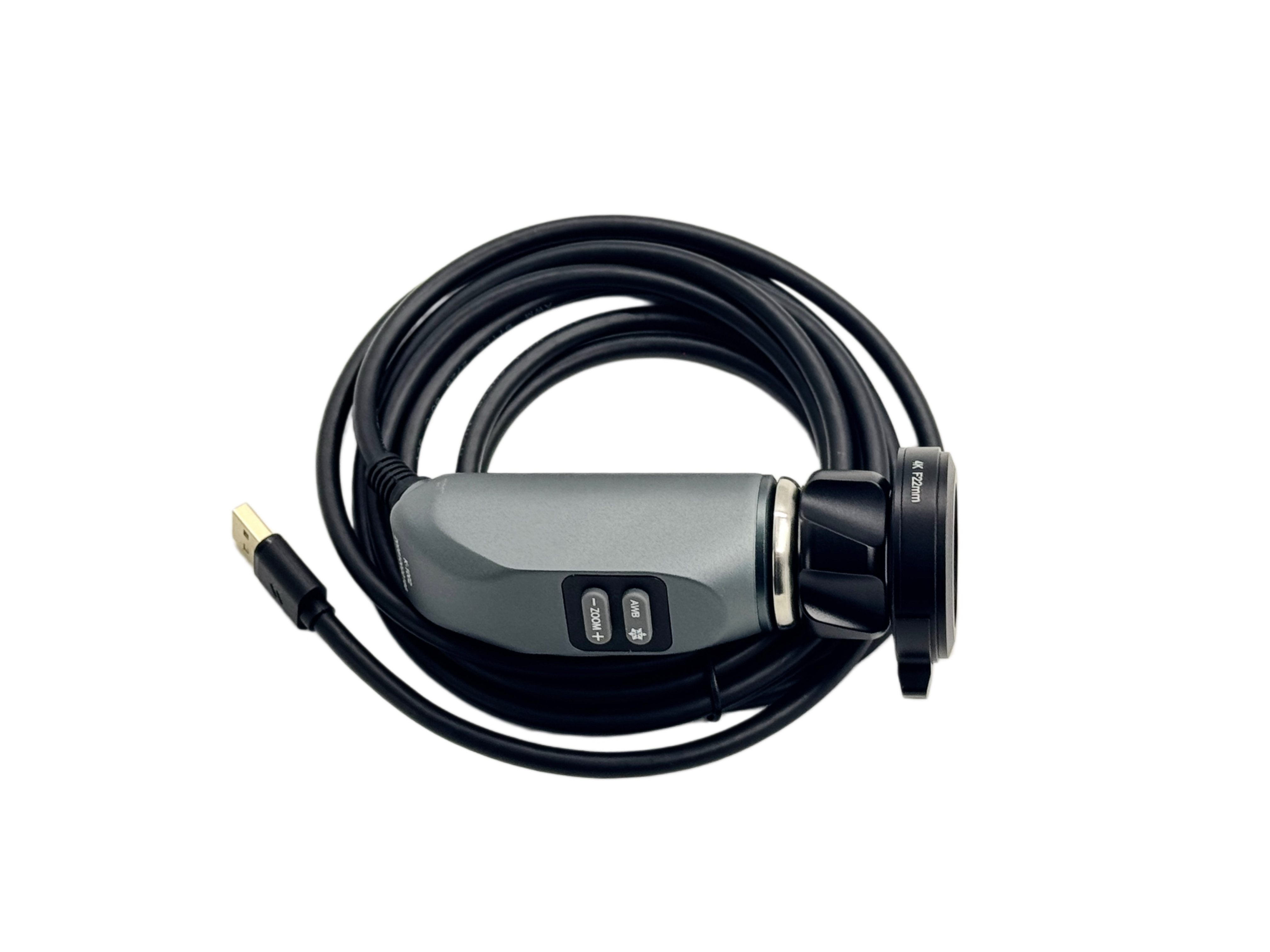

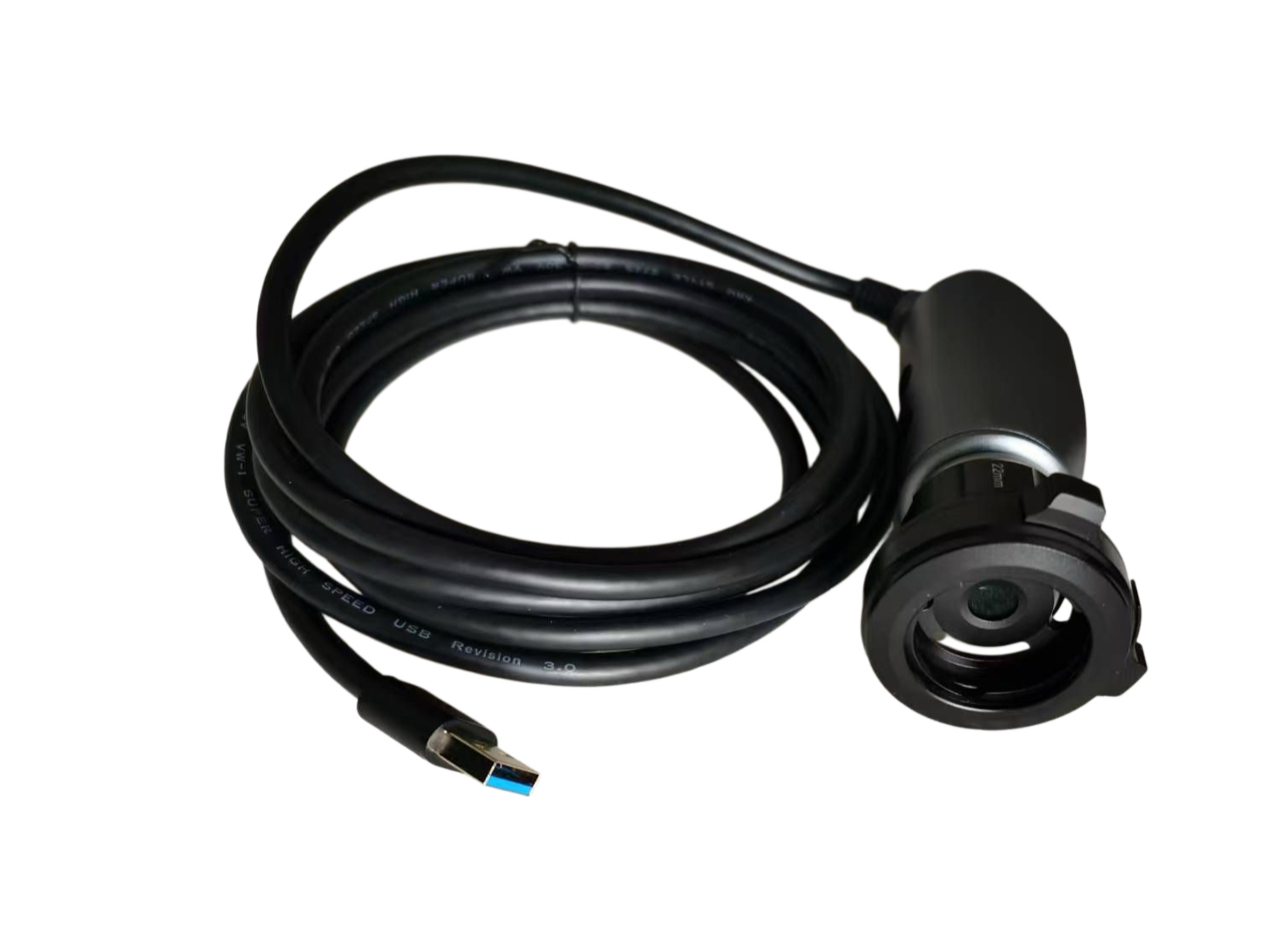

Video output interface: USB3.0, TYPE A male connector, cable length 3 metres

Video format: YUY2: 1080P60, NV12: 1080P60, MJPEG: 1080P60, H264: 1080P60, H265: 1080P60

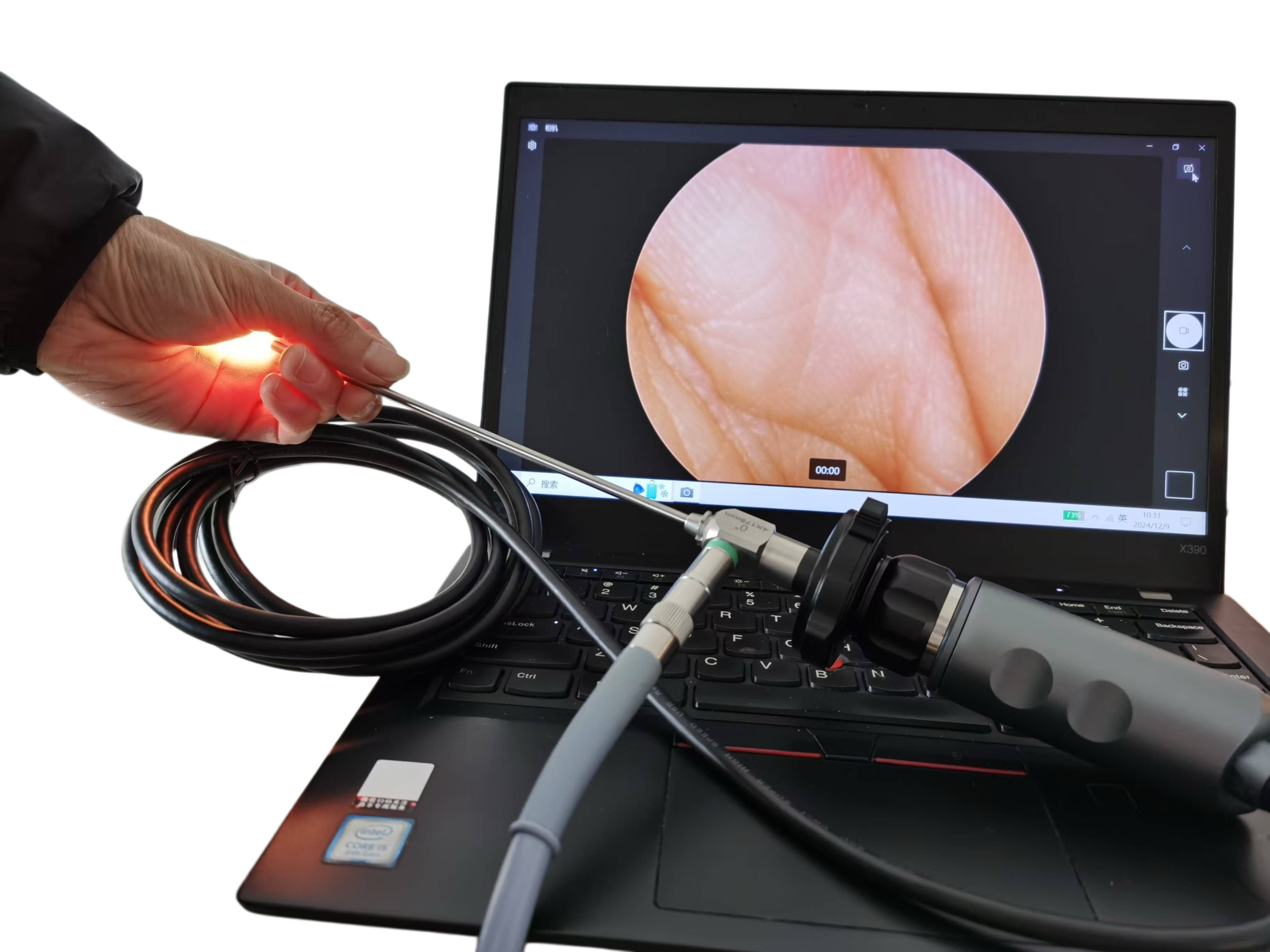

Computer requirements: Support OS: WIN10 or above, CPU Intel 8 generation i7 or above, memory storage16G or above, with USB3.0 A interface;

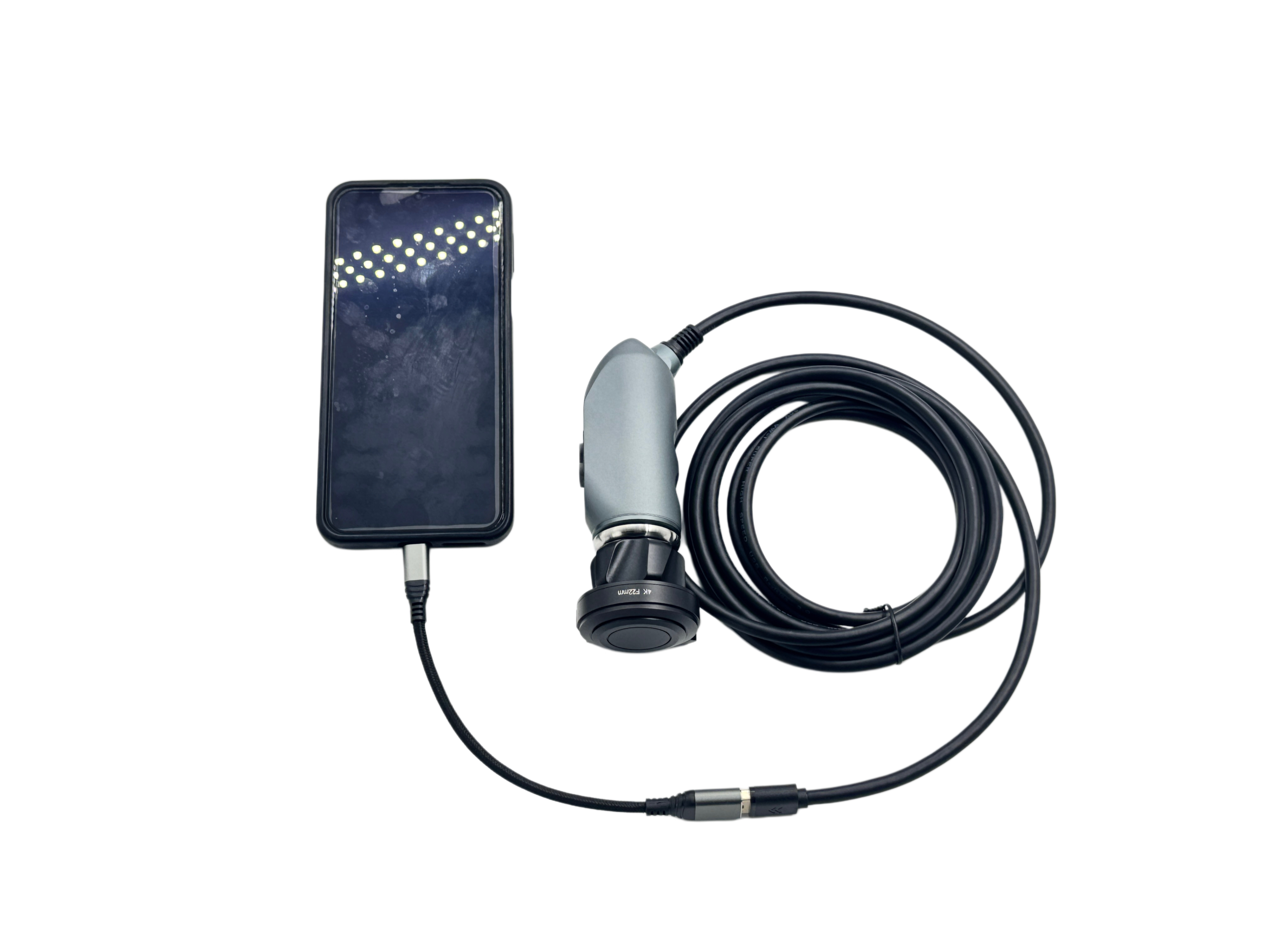

Support Android system; support Apple system.

Function:

1, support adjustment parameters by menu;

2, Support one key white balance , freeze, 2 times digital zoom, one key defogging;

3, Support standard CS mount.

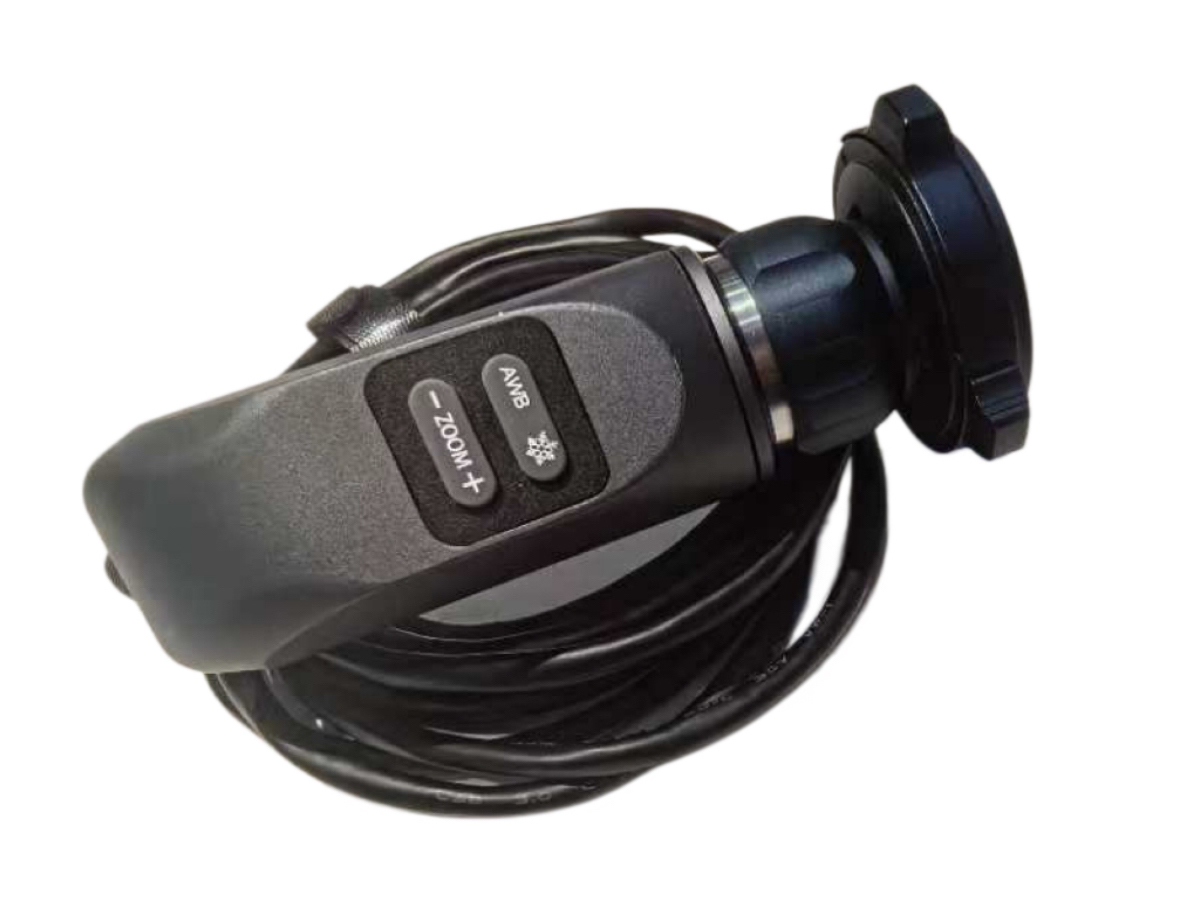

Product button descriptions:

1. "zoom-" , "zoom+" keys, control image zoom in and zoom out;

2. "FREEZE" button, it is freeze or defogging switch (set in the menu button definition);

3. "AWB" button, press and hold for 3 seconds to lock the white balance;

4. "Menu"Press and hold the "AWB" button, then press the "FREEZE" button immediately (within 3 seconds) to open the menu.

Menu：

Endoscopic Mode: ENT (There are 8 modes, user selectable, each mode's parameters are saved

and adjusted individually)

Brightness: 50 (brightness control)

Sharpness: 16 (Sharpness control)

Saturation: 39 (Saturation control)

Contrast: 50 (Contrast Control)

Hue: 0 (Hue Control)

Gamma : 6 (Gamma Control)

Exposure Compensation: 0 (Adjusts appropriately for underexposure or excessive light burst)

Exposure area: Centre (Reference area for selected exposure)

White Balance : Keyed Auto (Note: If you press and hold the "AWB" button for 3 seconds while

the menu is closed, this item will be forced to Keyed Auto)

    Manual Red: 58 (In white balance manual mode, set the value of red separately)

Manual Blue: 72 (in WB manual mode, individually set the value for blue)

Button Definition: Enter (Enter button definition settings)

System: Enter (to enter the "System" settings)

Save Exit: (exits the menu and stores the current parameter)

Exit (exits the menu without saving, returns to the setting before opening the menu this time)

--------------------------------

System

Language: ENGLISH (Chinese and English settings)

Power Frequency: 60HZ (corresponds to the light source frequency setting, to control the screen flicker)

Fine-tuning red: 25

Fine-tuning blue: 25

Reset : (factory setting)

Back: (enter "menu" setting)

VER xxxxxxxxxxxxx : Software version

--------------------------------

Button Name: Button Function

Freeze button: Freeze/Defog (Select "Freeze" button for freeze or defog)

BACK

---------------------------------

Power Consumption

Input Voltage: DC 5V

Maximum power consumption: < 3W

User Guide

Lock white balance

Turn on the cold light source, the lens to the white paper about 5cm away, long press the "AWB" button for 3 seconds,

the white balance settings start to work, wait for the screen to appear "OK" and then move away from the white

paper, the operation is complete.
